AI-Ready Data Centre Steel Fire Doors & Doorsets
)
)
)
)
)
)
Steel fire doors and fire doorsets with fire certification for up to 120 min integrity and insulation (including installation to sandwich panel walls and raised floors) up to 3.0m x 3.25m in size (door heights between 3000 - 3520mm have a maximum width of 2050mm). Fire doors can also be configured with security and pressure ratings.
Teckentrup’s core expertise is the design and manufacture of fire doors that are AI-ready (certified for larger sizes) for Data Centres. The intelligent modular system allows for precisely attuned functionality.
Data Centres are highly sensitive environments with the following requirements…
- Special fire protection (safety, pressure, sound) at raised installation positions in connection with light-weight stud wall constructions
- Comprehensive requirements for access technology
- Increased safety requirements
- Protection against flue gas, splash water and pressure loads during the continuation of computer operation
- Exclusively use tested and approved solutions

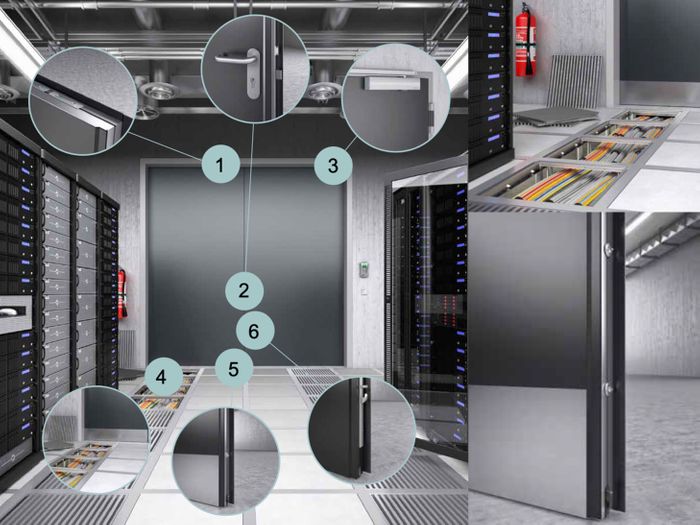

Teckentrup understands that these requirements need a specialist solution from a competent manufacturer. Teckentrup steel doors have the following data-specific design features (See 3rd image)…
- Magnetic contact and escape door strike
- Security sets with multipoint locking system
- Slide rail closer for automatic closures
- Raised installation positions (raised floors) with lightweight stud wall constructions possible
- Specially designed for fire-rated doors: Mushroom head locking incl. bottom seal
- Hook-and-bolt locking system for pressure doors
Teckentrup steel doors for Data Centres are convincing at all levels…
- Fire certification EI260 + EI290 for sandwich panel wall (no steel substructure necessary)
- Rated for pressure up to 7.5 kPa
- 1- and 2-leaf design
- Door size up to 3.0 x 3.25 meters (door heights between 3000 - 3520mm have a maximum width of 2050mm)
- All features can be combined: incl. certification for most European markets
- Special equipment (among others soundproof glass, 4-sided frames)
- Raised access floors with lightweight stud wall
- Special lock and access technology for increased security requirements (connection to existing building management and security systems possible)
- Specialist frames that interface with typical data centre wall details
Where are our doors?
- London 4
- Ionos Worcester
- AMS1 Amsterdam
- VIE02 Vienna
- GER1 Cloud HQ Germany
- Hanua Germany
- FRA1X0 Germany
- FRA11 Germany
- FRA12 Germany
- FRA16 Germany
- FRA33 Germany
- FRA61 Germany
- FR74 Germany
- FRA134/5 Germany
Doors are often seen as difficult products to get right, but at Teckentrup Door Solutions we specialise in making the complex simple. Talk to the team about your requirements – Call 01925 924050, email enquiries@teckentrup.co.uk OR visit the team at stand D186!
