AI-Ready Data Centre Steel Security Doors & Doorsets
)
)
)
)
)
)
Steel security doors and security doorsets with security certification to RC3 / SR2 up to 3.0m x 3.25m in size (door heights between 3000 - 3520mm have a maximum width of 2050mm) that are suitable for internal installation and external enveloping. Security doors can also be configured with fire and pressure ratings.
Teckentrup’s core expertise is the design and manufacture of security doors that are AI-ready (certified for larger sizes) for Data Centres. The intelligent modular system allows for precisely attuned functionality.
Data Centres are highly sensitive environments with the following requirements…
- Special fire protection (safety, pressure, sound) at raised installation positions in connection with light-weight stud wall constructions
- Comprehensive requirements for access technology
- Increased safety requirements
- Protection against flue gas, splash water and pressure loads during the continuation of computer operation
- Exclusively use tested and approved solutions

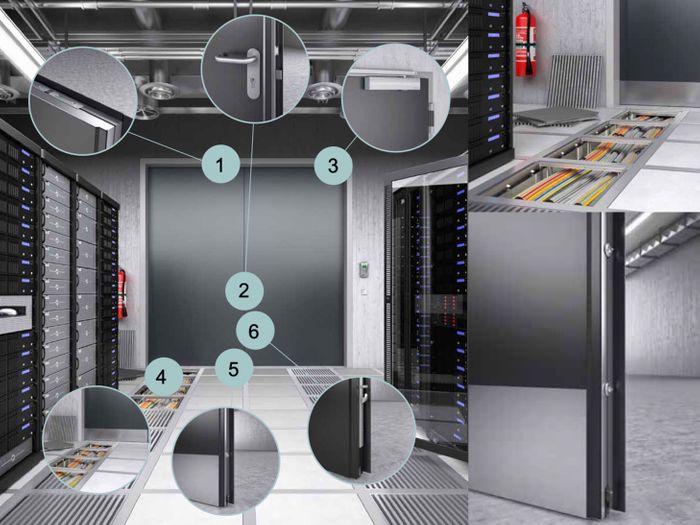

Teckentrup understands that these requirements need a specialist solution from a competent manufacturer. Teckentrup steel doors have the following data-specific design features (See 3rd image)…
- Magnetic contact and escape door strike
- Security sets with multipoint locking system
- Slide rail closer for automatic closures
- Raised installation positions (raised floors) with lightweight stud wall constructions possible
- Specially designed for fire-rated doors: Mushroom head locking incl. bottom seal
- Hook-and-bolt locking system for pressure doors
Teckentrup steel doors for Data Centres are convincing at all levels…
- Fire certification EI260 + EI290 for sandwich panel wall (no steel substructure necessary)
- Rated for pressure up to 7.5 kPa
- 1- and 2-leaf design
- Door size up to 3.0 x 3.25 meters (door heights between 3000 - 3520mm have a maximum width of 2050mm)
- All features can be combined: incl. certification for most European markets
- Special equipment (among others soundproof glass, 4-sided frames)
- Raised access floors with lightweight stud wall
- Special lock and access technology for increased security requirements (connection to existing building management and security systems possible)
- Specialist frames that interface with typical data centre wall details
Where are our doors?
- London 4
- Ionos Worcester
- AMS1 Amsterdam
- VIE02 Vienna
- GER1 Cloud HQ Germany
- Hanua Germany
- FRA1X0 Germany
- FRA11 Germany
- FRA12 Germany
- FRA16 Germany
- FRA33 Germany
- FRA61 Germany
- FR74 Germany
- FRA134/5 Germany
Doors are often seen as difficult products to get right, but at Teckentrup Door Solutions we specialise in making the complex simple. Talk to the team about your requirements – Call 01925 924050, email enquiries@teckentrup.co.uk OR visit the team at stand D186!
