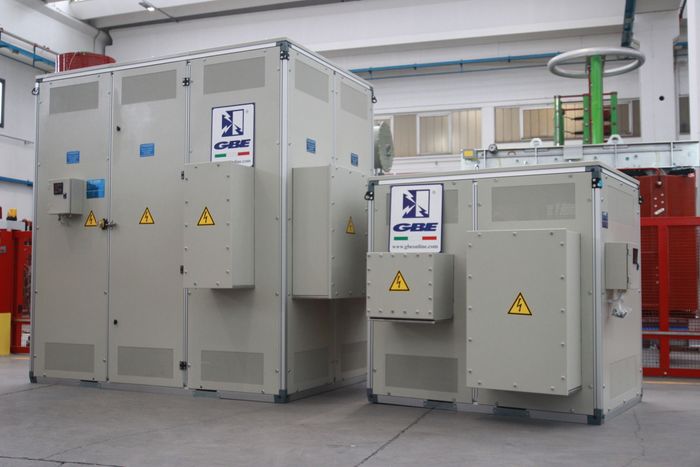

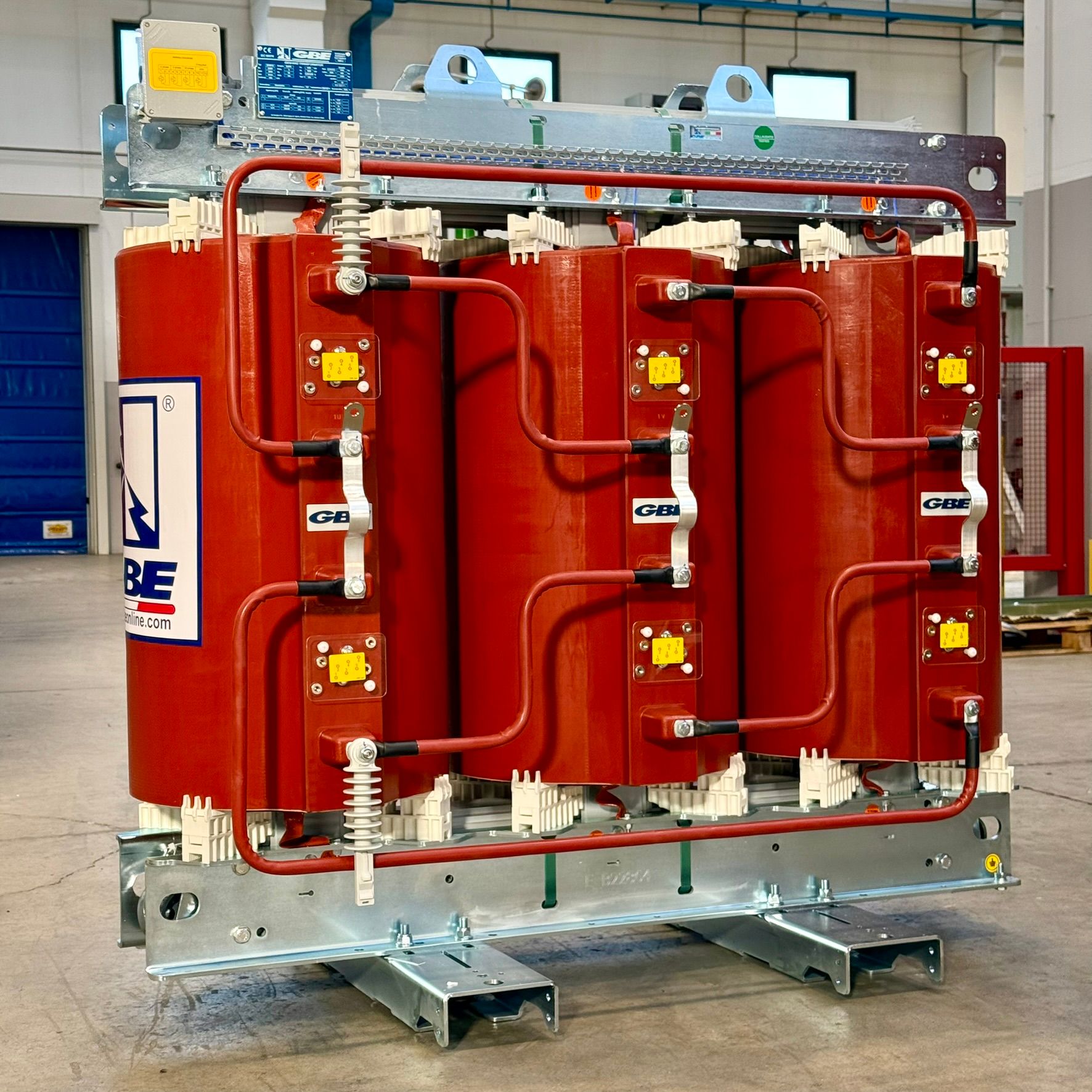

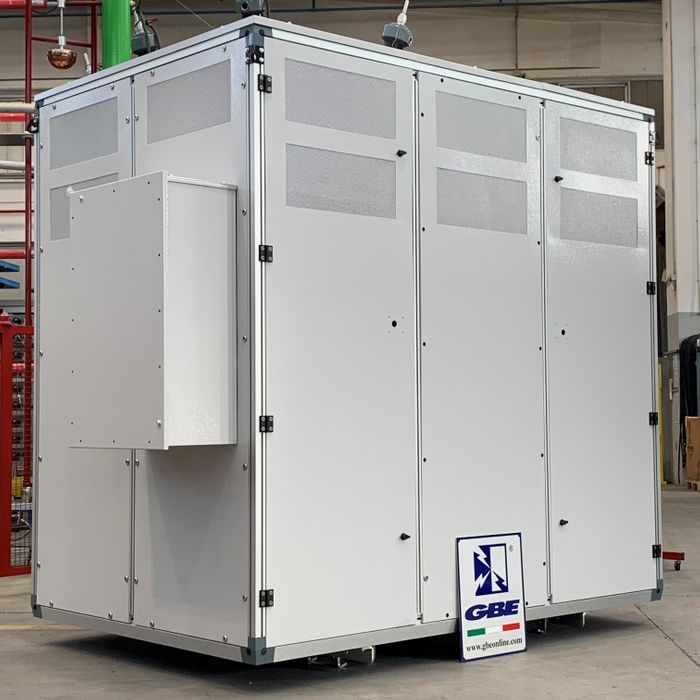

MV  cast  resin  transformers  have  reached  a high  level  of  reliability  thanks  to  the  latest technologies.  The  E2,  C2,  F1  production can be used with high level of humidity and  pollution avoiding all the fire risks, the toxic  emissions and any harmful substance and it is  in according to EU Regulation No 548/2014,  Directive 2009/125/EC. Class E4 (IEC 60076- 11) can be guaranteed for special applications,  such as offshore installations or wind mills plants,  and  class  C5  can  be guaranteed  for extreme climatic conditions, such  as  -60°  C  working  temperature.  The transformers  are  manufactured  with  fire-retardant,  insulating  and  self-extinguishing materials, so they are not exposed to all the restrictions normally applied to the flammable machines  where  there  is  fire  spreading  and  propagation danger. The  whole  GBE  production  is  manufactured with  galvanized  steel  work  and  class  F  or  H insulating materials, for some applications with pre-impregnation  with  resin.  The  windings are vacuum encapsulated with epoxy resin or vacuum class H polyester resin impregnated. The  transformers  can  be  supplied  with protection enclosure according to the required IP.  The protection  housings  can  be  supplied in  pickled  or  galvanized  sheet  for  outside installation.  GBE  products  are  therefore suitable  for  installation  in  hospitals,  banks, public buildings, residences, tunnels, on boats, subways, offshore and on shore platforms.

For further information do not hesitate to visit our website at www.gbeonline.com
