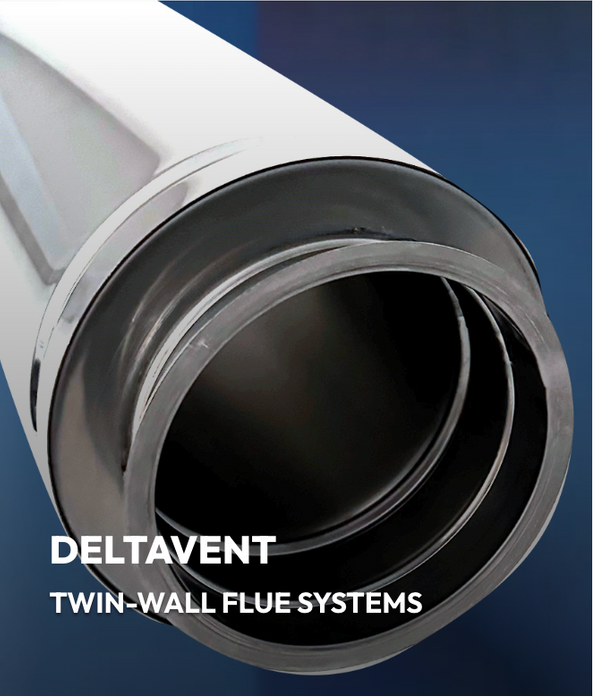

Deltavent Twin-Wall Flue Systems
)
)
)
)
)
)
Construction
Deltavent sectional lengths/fitting components are fabricated in a variety of diameters and lengths with continuously welded vertical seams. The Deltavent system also utilises four insulated/non-insulated annular variation options to provide a required minimum external case surface temperature. Inner liner coupler characteristics consist of male and female connection sockets complete with a 10mm 90° right angled flange formed at either end of all components. Deltavent joints shall be secured by clamping an externally fitted V-Band over the mating flanges of the adjoining components.
Diameter RANGE
This double-lined system is available as Deltavent 25 (with a 25mm insulating gap) or Deltavent 50 (with 50mm mineral wool insulation). There are also 75mm and 100mm annuli available on request.
INT DN Std . 100, 125, 150, 200, 250, 300,350, 400, 450, 500, 550, 600, 650, 700, 750, 800, 850, 900, 950, 1000,
(On Demand ) 175, 225, 275, 325, 375, 425, 475, 525, 575, 625, 675, 725, 775, 825, 875, 925, 975.
Quality Assurance
The complete range of components are manufactured, tested, and where required, installed within scope of stringent quality
controlled conditions in accordance with EN ISO 9001:2015 and BS EN 1856-1/2:2009. When requested, A1 Flue Systems shall submit copies of type test reports relating to product performance in addition to the “Certificate of Registration” administered by the British Standards Institute.
Fire Rating
The Deltavent system has been successfully assessed by the Loss Prevention Council for Fire Resistance. A fire rating of 4 hours can be achieved in accordance with stability and integrity criteria of BS 476: part 20. If required, A1 Flue Systems shall submit all test reports in support.
APPLICATION EXAMPLES INCLUDE:
- Diesel generator exhausts
- Condensing boilers
- CHP systems
- Fan-assisted flue systems
- Kitchen extraction systems
- Smoke extraction systems
- Re- lining of existing chimneys
- Free standing applications up to 3.5m
Performance Designations
- BS EN1856-1 T600-H1-D-Vm-L20070-G (50)
- BS EN1856-1 T600-H1-D-V2-L50070-G (50)
- BS EN1856-2 T600-H1-D-Vm-L20090-G (50)
- BS EN1856-2 T600-H1-D-V2-L50090-G (50)
- BS EN1856-1 T200-H1-W-Vm-L20070-0 (50)
- BS EN1856-1 7200-H1-W-V2-_50070-0 (50)
- BS EN1856-1 T200-H1-W-Vm-L20090-0 (50)
- BS EN1856-1 T200-H1-W-V2-L50090-0 (50)
