Ellis Twist Foot

Ellis Patents Ltd Stand: E60
  • Ellis Twist Foot
  • Ellis Twist Foot
  • Ellis Twist Foot
Ellis Twist Foot Ellis Twist Foot Ellis Twist Foot
  • Designed for rapid installation into 41×41mm and 41×21mm Unistrut channel or ladder with inverted rungs
  • All fixings supplied pre-assembled – no additional site fixings required
  • 316L stainless steel frame with A4-70 stainless steel captive closure fixings
  • Low Smoke and Fume Zero Halogen (LSF0H), Phosphorus Free polymeric liners for increased cable protection
  • Fixing kits available in A4 stainless steel, galvanised steel or zinc-plated steel
  • Designed, tested and manufactured in accordance with IEC 61914

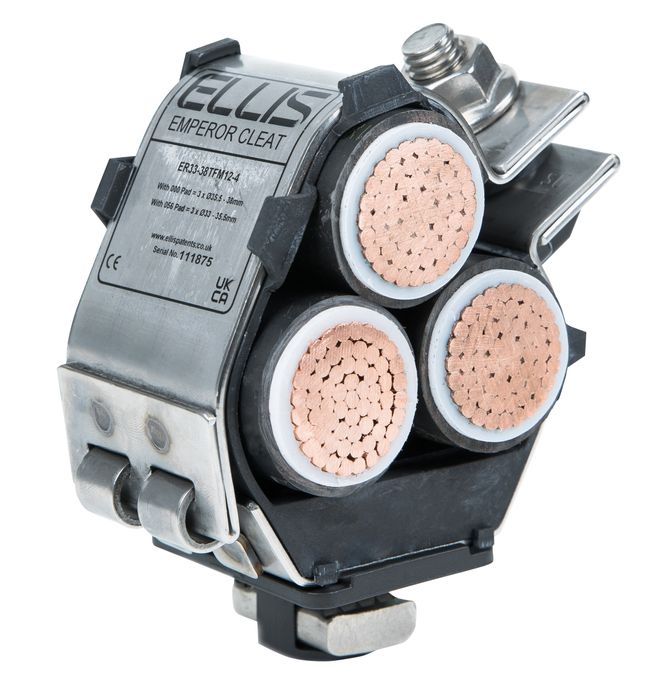

Emperor Twist Foot:
  • Heavy-duty cable cleat for trefoil cable formation
  • Cable range of Ø19mm – Ø128mm
  • Single-foot versions for cables up to Ø58mm
  • Double-foot versions for cables Ø55mm – Ø128mm

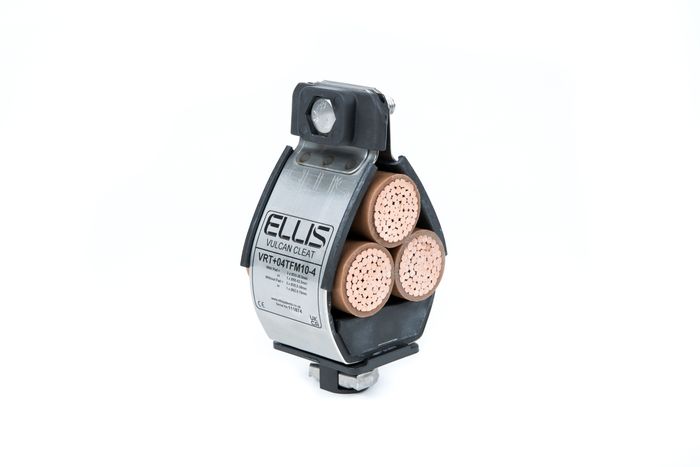

Vulcan+ Twist Foot
  • Standard duty cable cleat for trefoil cable formation
  • Cable range of Ø15mm – Ø101mm
  • Single-foot versions for cables up to Ø70mm
  • Double-foot versions for cables Ø67mm – Ø101mm
